    Cable Label Printer High Voltage Cable Testing Equipment Support English

    Ask Lasest Price
    Brand Name : Fanke High-Voltage
    Model Number : SP650E
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10units/month
    Delivery Time : 10 work days
    • Product Details
    • Company Profile

    Cable Label Printer High Voltage Cable Testing Equipment Support English

    Cable Plate Printer , Cable Lable Printer , Cable Testing Tools , Support English

    I. Product Introduction

    Model SP650E cable plate and lable printer is a kind of Identification marking auto tools in power project. Referred to as a kind of signage machine, after computer editing, the user can print graphic symbols, numbers, letters, English characters on PVC / ABS /aluminum alloy film plates, and special self-adhesive labels where the need for plate making .

    The machine can auto and continuous print the plate or labbles to greatly improve production efficiency, and provide standard identification printing for outdoor tube wells, poles, patch panels, and cable resources. The signage machine belongs to the special equipment for equipment installation, transformation, secondary overhaul, and wiring design of integrated wiring engineering, which can meet the marking needs in power plants, electrical equipment factories, substations, power industry, telecommunications, petroleum, chemical and other fields.


    II. Feature And Advantage

    1. Can print plate ang label of PVC, ABS, PET and other materials
    2. Unique automatic continuous functions into the card, which greatly improves the work efficiency
    3. Can print a wider range of high-speed printing
    4. High-speed printing,wider print Range
    5. Provide free professional editing software
    6. Unique USB2.0 interface

    III. Techincal Performance


    SNContentPerformance
    1ModelSP650E
    2Resolution300dpi
    3Printing methodThermal transfer
    4Display modeLCD white backlight
    5Feeding mode

    Automatic and continuous feeding plate or single and

    manual feeding plate

    6Maximum capacity of plate feeding cassetteTotal thickness of all plates ≤ 50mm, 50 pieces once (1mm/piece), and the plate feeding cassette is dis-mountable, also realizing single and manual plate feeding
    7Max effective printing width57mm
    8Max effective printing lengthPlate: 550mm Label: 1200mm
    9RibbonMonochrome (seven colors optional: black, red, green, blue, gold, silver, white)
    10Ribbon specification60mm*130m black
    11Types of materials

    Plate: Hard plate (PVC.ABS)

    Label: Soft label (PVC.PET)

    12Material thicknessPlate:0.2mm-3mm Label: 0.2mm-1mm
    13Material widthPlate: 20mm-80mm Label: 20mm-80mm
    14Material length

    Plate: 50mm-550mm

    Label: 50mm-1200mm

    Max outside diameter of label roll of 170mm at most

    15InterfaceUSB2.0 interface
    16

    Print speed(32*68mm plate as

    example)

    About 7 pieces/min, and about 400s for 50 plates printing
    17Cleaning mode

    Automatic cleaning, dis-mountable cleaning roller for

    manual cleaning is also allowed with cleaning tape

    18Edit softwareProfessional edit software SP Editor
    19Compatible systemWindows XP/Vista/WIN7/WIN8
    20External dimensionW440×D250×H214mm
    21Weight11kgs
    22Operating environmentTemperature 15℃~35℃, humidity 15%~80% RH
    23Working VoltageAC200-240V50-60HZ (city power)

    IV.Consumables List optional


    ConsumablesKindSpecificationModel
    ribbonblack ribbon130 meters/rollSP-R130B
    white ribbon100 meters/rollSP-R100W
    red ribbon130 meters/rollSP-R130R
    silver ribbon130 meters/rollSP-R130S
    blue ribbon130 meters/rollSP-R130BU
    green ribbon130 meters/rollSP-R130GR
    golden ribbon130 meters/rollSP-R130GL
    sticker50mm silver sticker50m/roll Light silver wireSP-L50050S
    70mm silver sticker50m/roll Light silver wireSP-L70050S
    plate32x68plateSingle hole 32mm*68mmSP-32681
    30x60 platetwo holes30mm*60mmSP-30602
    Cleaning CartridgeCleaning Cartridge6 meters/rollSP-CF
    Aluminum alloy boxOptional SP-LB01
    Division I provide customized services for signs, stickers and die-cut sticker, please contact us!

    V. Printed plate or lable sample

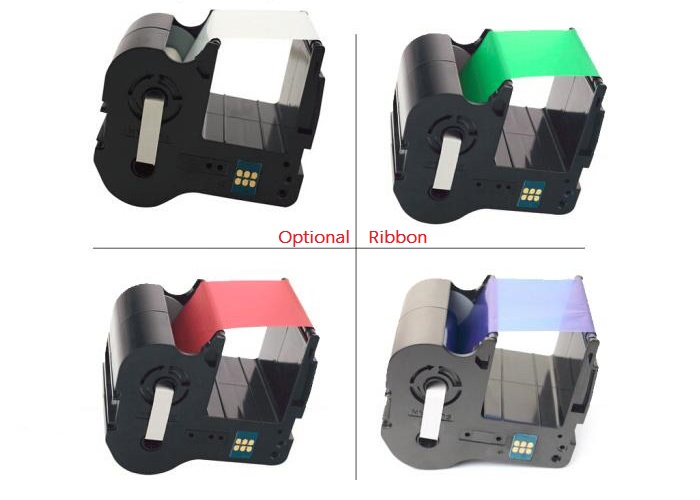

    VI. Optional Ribbon Box Sample
